Langfang Weikaihua Building Material Co., Ltd. is one of the leading manufacturers and suppliers of l-shaped corner guards with holes in China. If you're going to buy durable l-shaped corner guards with holes made in China, welcome to get quotation from our factory. All customized products are with high quality and low price.

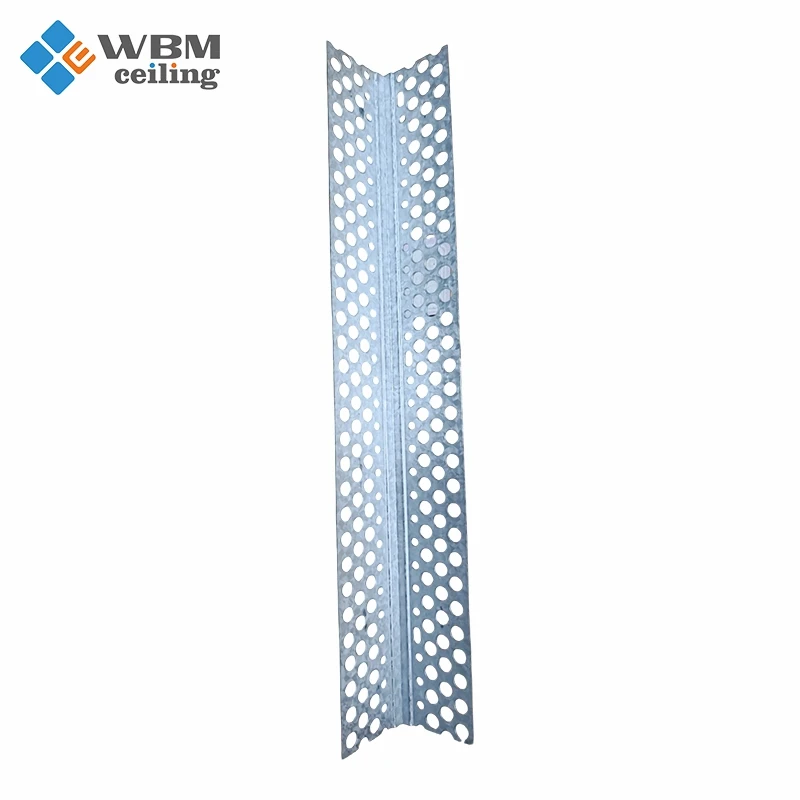

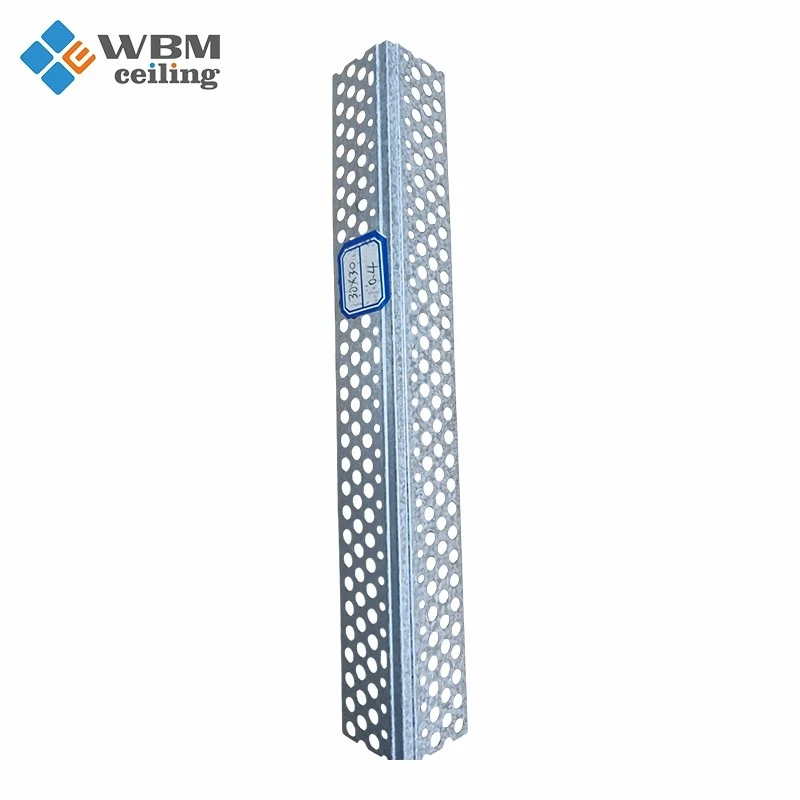

L-Shaped Corner Guards with Holes is ceiling edge angle profile 25×25mm, large size L angle for ceiling edge finishing and protection. L-Shaped Corner Guards with Holes This perforated L type corner guard ceiling edge angle profile is essential perimeter trim matching suspended T bar ceiling grid. This perforated L-shaped corner guard made of hot-dip galvanized steel, standard equal-sided L shape perfectly covers wall-ceiling gaps, neatens ceiling edges and fixes the outer frame of ceiling grid. Crack-resistant and durable: Metal rigid support prevents wall cracks caused by thermal expansion and contraction, and its service life is in line with that of the building.
Product Specification Table
|
Name |
L Type Ceiling Edge Angle Profile 25*25mm |
|
Section Shape |
Equal-sided L Shape, 25mm × 25mm |
|
Material |
Hot-dip Galvanized Steel Strip |
|
Optional Surface |
Galvanized Silver / White Coated |
|
Custom Thickness |
0.25mm, 0.28mm, 0.30mm, 0.32mm optional |
|
Function |
Wall perimeter trim for suspended ceiling grid |
Key Functions
1. Edge Finishing for Neat Boundaries:
Installed at the junction of the suspended ceiling and walls or columns, it completely encloses the sides of the joists and panels, creating a clean, straight line that makes the ceiling edges look neater and more aesthetically pleasing.
2. Perforated Design for Ventilation and Moisture Prevention:
The evenly spaced circular holes in the edge profile effectively promote air circulation, reducing moisture buildup inside the ceiling and preventing the panels from warping or developing mold due to dampness. This feature is particularly suitable for humid environments.
3. Galvanized for Rust Prevention and High Durability:
Made of galvanized steel, it resists rust and corrosion, ensuring a long service life.
Standard Installation Instructions
1. Mark and Position:
Mark a horizontal line on the wall based on the ceiling elevation to determine the installation position of the edge joists.
2. Secure the Edge Joists:
Use expansion screws or steel nails to secure the perforated edge joists to the wall along the horizontal line, with spacing generally not exceeding 400 mm.
3. Install Main and Secondary Joists:
Snap the ends of the main and secondary joists into the grooves of the edge joists to form a complete framework.
4. Panel Installation:
When installing gypsum board or mineral wool board, overlap the edges of the panels onto the edge joists to complete the finish.
Research Team
Never forget the original intention so that we can get the result we want in the end,but it was easy to have an initiative and difficult holding on to it.
However, WBM has been constantly insisting on the improvement of production and research for more than 20 years, we accumulated the experiences of several generations of technicians, overcame numerous technical difficulties, and, consequently, each elaborately made product has stood the test of the global market, and has received good reputation from collaborated clients world-widely.
WBM factory management standards had passed the ISO international management system certification, and all our products had passed the most stringent SGS and CE global quality certifications.
FAQ
1, Can we get some samples? Any charges?
Yes, free existing labels, you need to pay shipping cost.
2. How can we get a quote?
Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.
3. Can you help with the design?
Yes, Simply design free, special design need to pay.
4. What's the trade term and payment term?
Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!
T/T, Western Union, PAYPAL etc.
5. May I have new sample made with my design for confirmation?
Yes. Sample charge means set up charge for production line, little quantity we suggest that straight for production. Large quantity we suggest that sample first, and sample fee can be refund.
