Langfang Weikaihua Building Material Co., Ltd. is one of the leading manufacturers and suppliers of drywall roll forming machine in China. If you're going to buy durable drywall roll forming machine made in China, welcome to get quotation from our factory. All customized products are with high quality and low price.

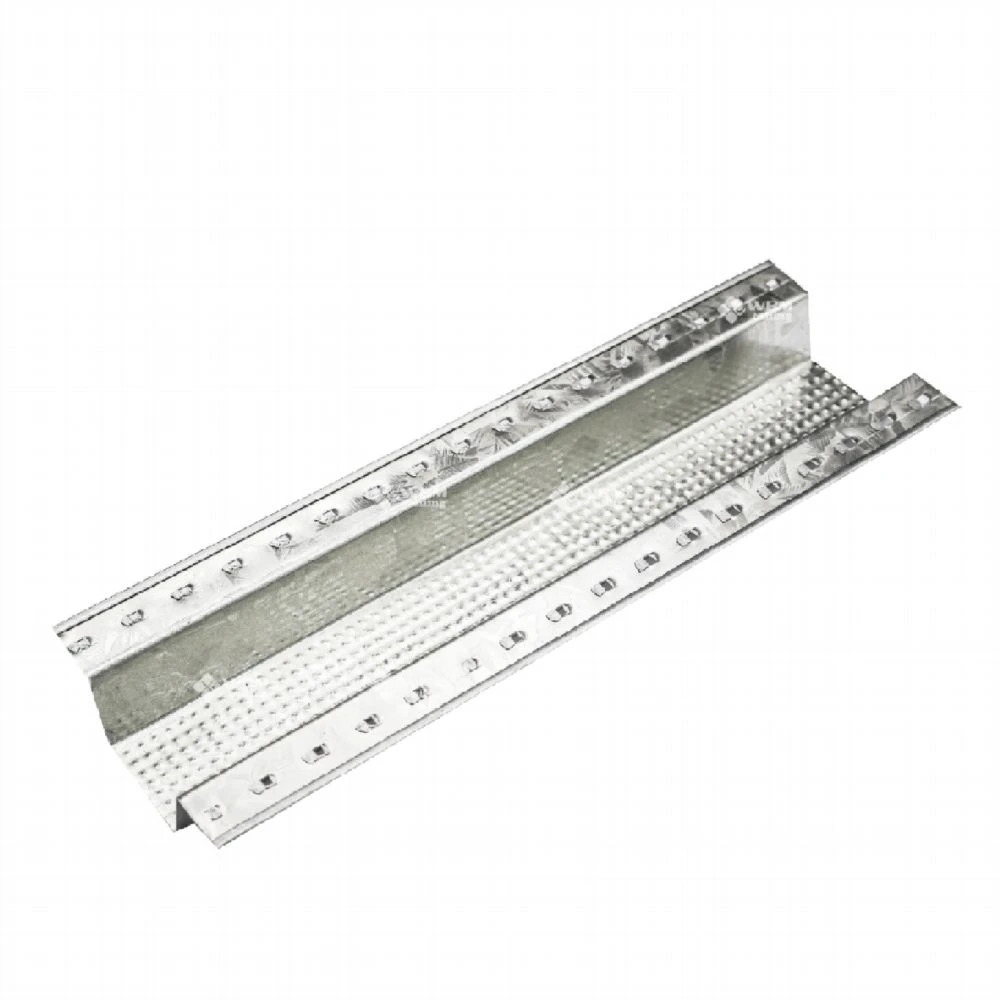

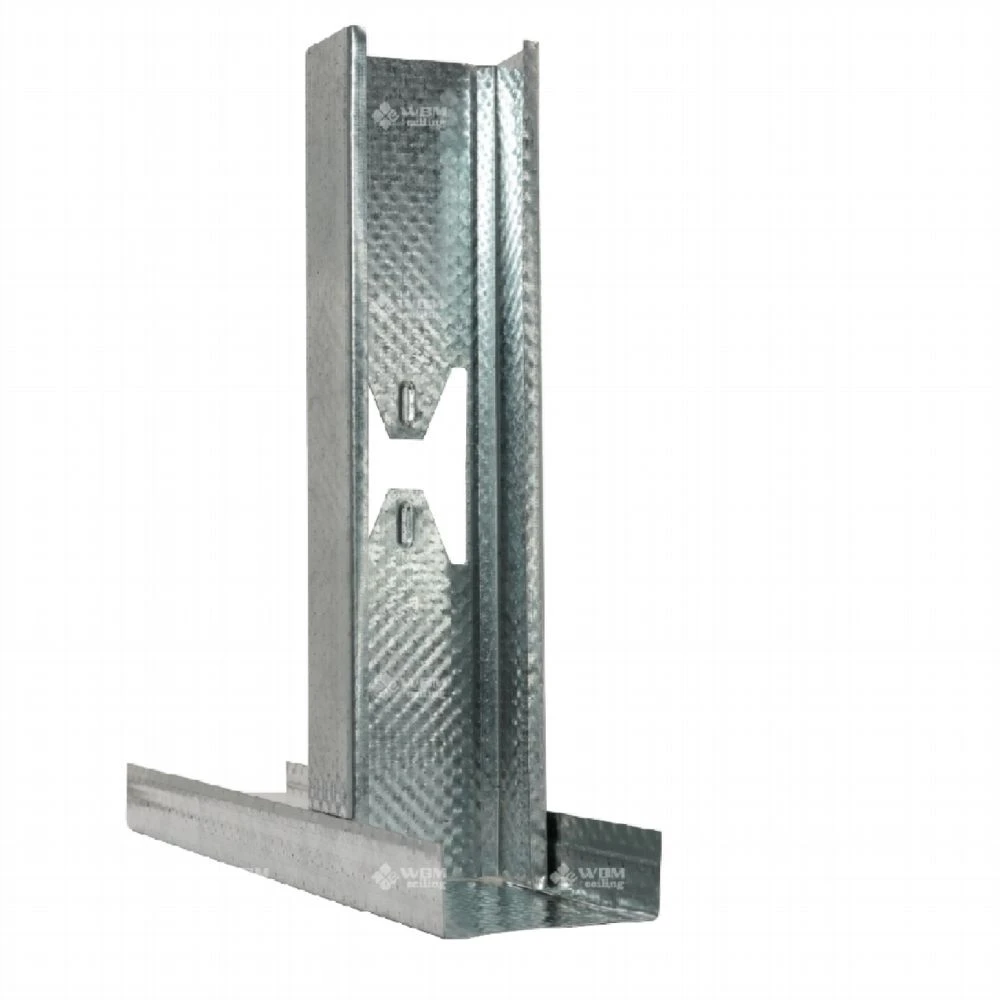

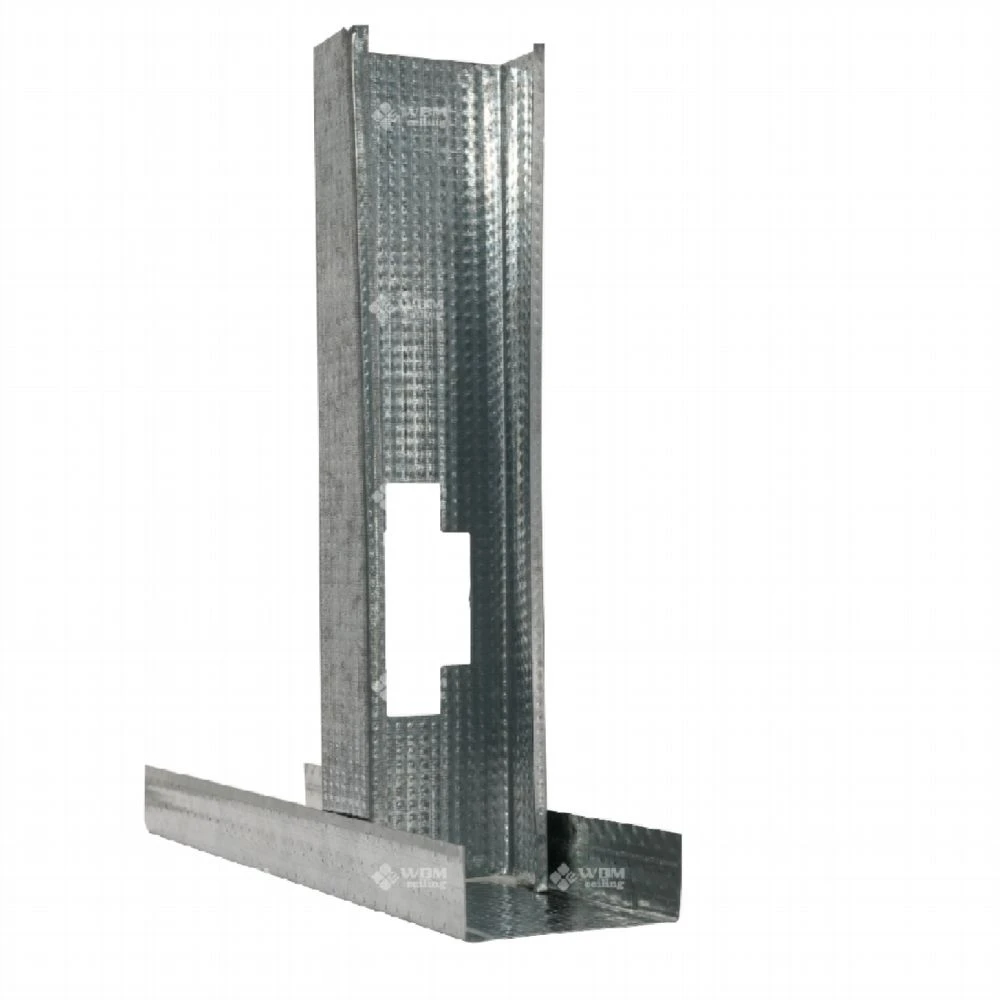

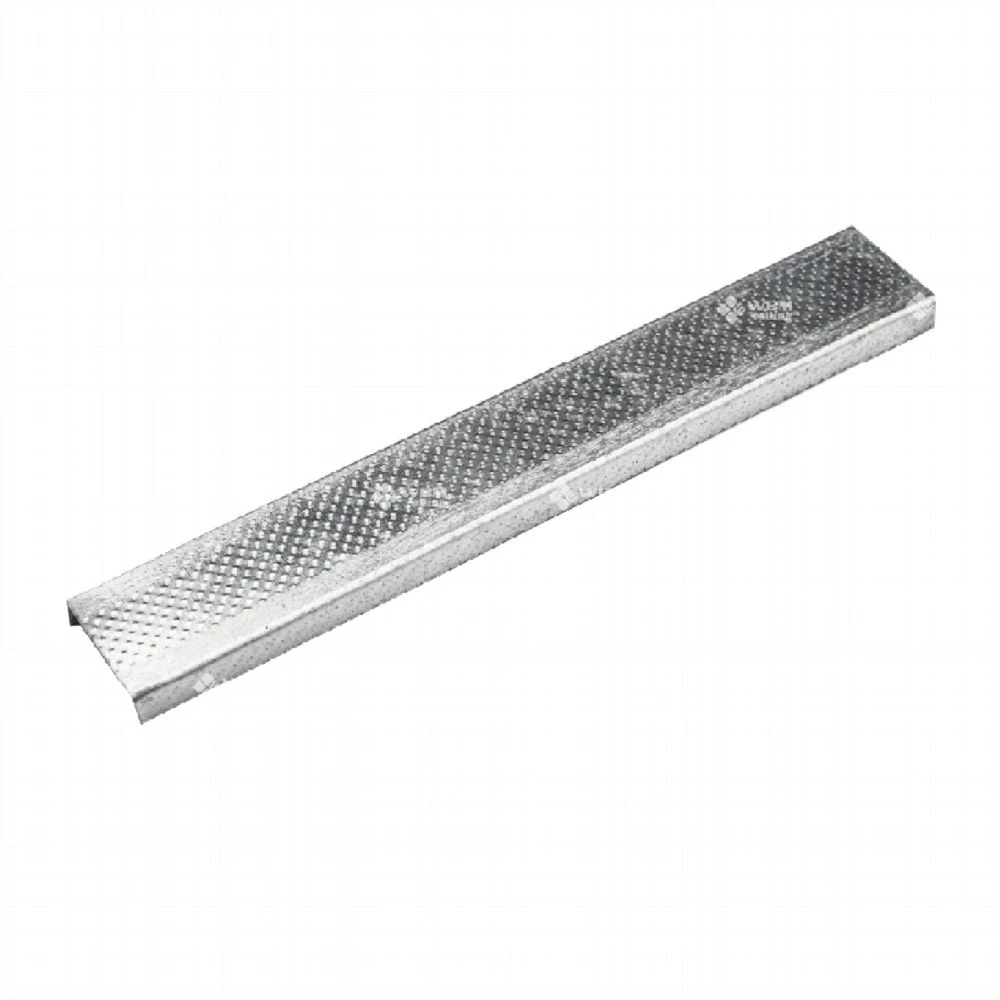

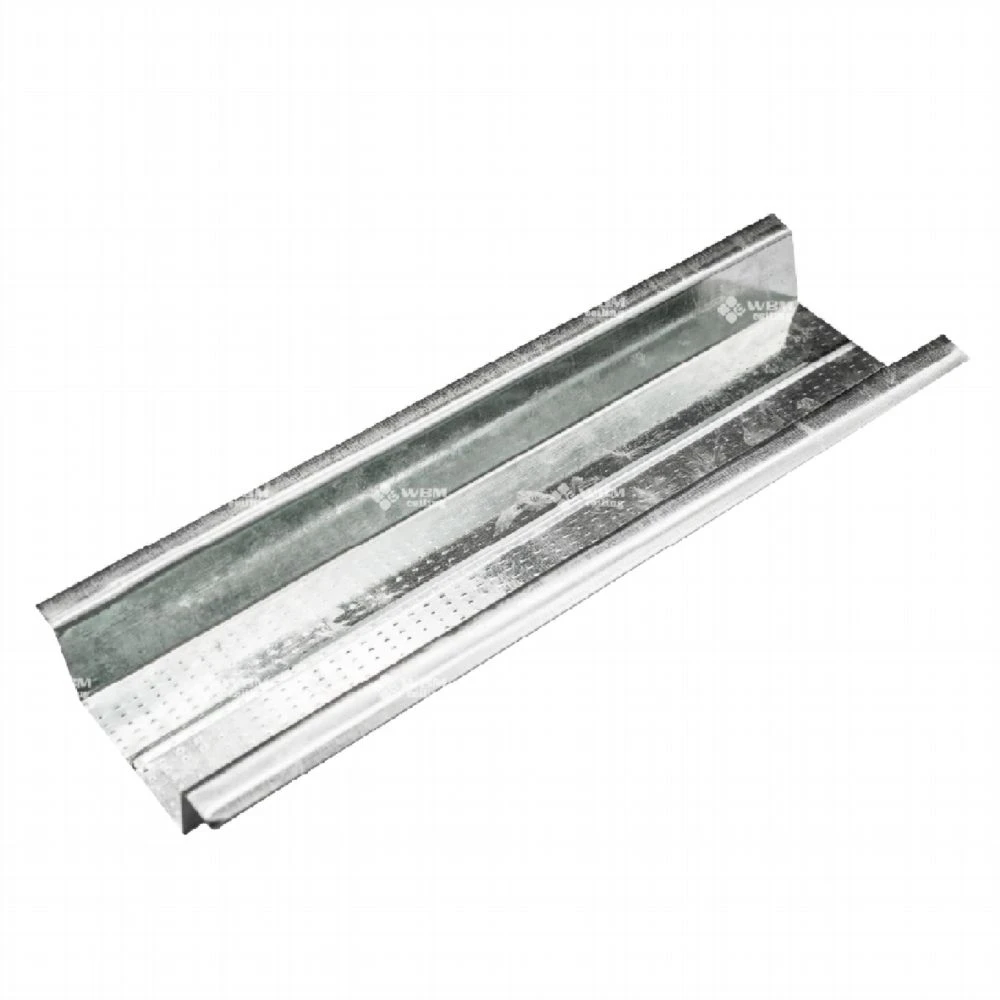

The drywall roll forming machine is a versatile automated production line designed for manufacturing various metal framing components for partitions and ceilings. It can be configured to produce studs, tracks, CD profiles, UD profiles, furring channels, and wall angles, using precision cold-rolling, punching, and cutting technologies. Equipped with PLC controls and servo feeding, this machine ensures high efficiency, accurate dimensions, and consistent quality, making it an ideal solution for producing cost-effective metal framing for modern interior construction.

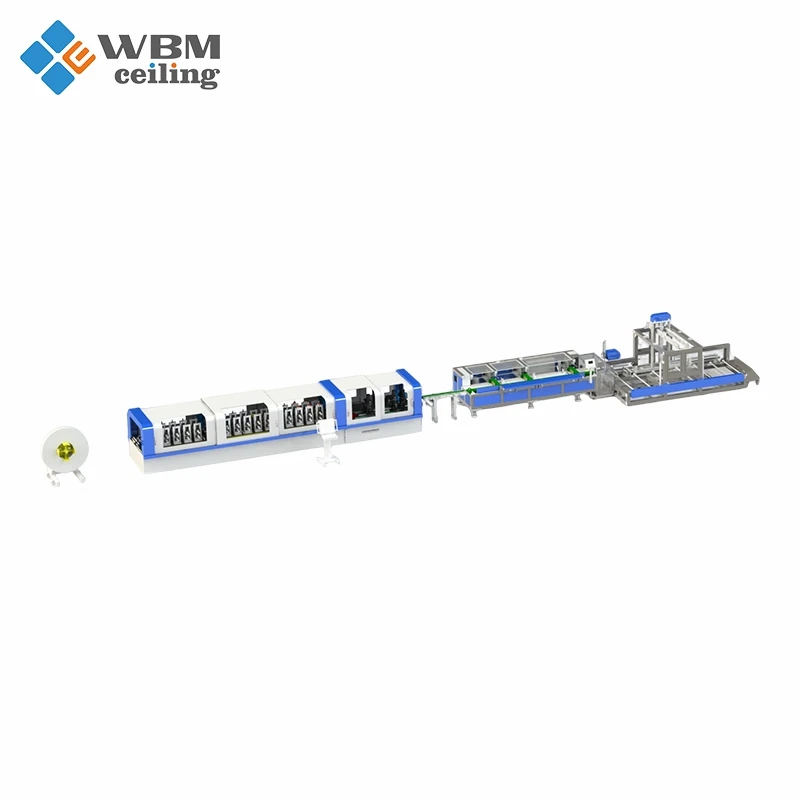

The Drywall roll forming machine uses multi-pass forming rolls to continuously bend coils, strips and other metal plates laterally to make specific cross-section, and when the set length is reached, it is cut off by the hydraulic system controlled by servo motor
Roll Forming Machine technical data sheet
|
Work speed |
0~120m/min |
|
Voltage |
380V(customizable) |
|
Transmission |
By gearbox |
|
Raw material |
Galvanized steel |
|
Machine frame |
Carbon steel welded |
|
Shaft diameter |
40mm/50mm |
|
Roller material |
Cr 12/Cr 12MoV |
|
Forming steps |
10~ 16 steps or Customizable |
|
Cutting type |
Hydraulic cutting |
|
Cutting material |
Cr12 |
|
Control system |
PLC |
FAQ
Where is your factory located?
In Wen'an county, Langfang city, Hebei province,China.
When did your factory established?
Since 1996.
How far is your factory from the airport and train station?
From Beijing airport about one and half hours' drive, we will arrange your visit.
Do you have an export license?
Yes.
Do you have after-sale service?
Yes, Good after-sale service, handling the customer complaint and solve problem for customers.
When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will consider your inquiry priority.
